Measurement
Volume
Examples
Have a Go
Practice Questions



Back to
Measurement Units

Volume: The amount of space occupied by an object is called its volume.
Cubic units are used to measure the volume.(eg.cm3, m3)

The volume of a rectangular prism = length × width × height


Prism is a three dimensional object which has a uniform cross sectional area.



In this prism, the cross section is a rectangle.This is called a rectangular prism.

V = l × w × h



The volume of a prism = Area of the base × height







V = A × h

Where A is the area of the base and h is the height of the prism.













Example

1. Let's find the volume of this prism.





To find the volume of the prism, we can use the above formula.

V = l × w × h

Where    l = 4cm,    w = 3cm,       h = 5cm

V  =  4 × 3 × 5 cm3
=        60 cm3





2. Let's find the volume of this figure.



To find the volume of the prism, we can use the formula V = A × h  where A is the area of the base(or area of the cross section) and h is the height(or the length of the prism)

The base of the prism is a triangle, so we need to find the area of the triangle.

Area of a triangle (A)  =  ½ b × h  =  ½ × 8 × 7 = 28 cm2

The height of the prism (h) (or the length of the prism) = 13 cm

Volume of the prism   =  A × h     =  28 × 13    =   364 cm3



Return to Top of Page













Have a Go

Problem 1

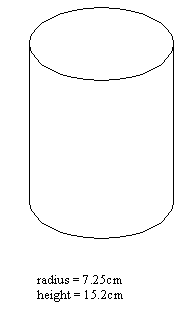

Find the volume of this cylinder.





See Solution









Return to Top of Page













Practice Questions

Question 1
Find the volume of this cylinder.





Question 2
Find the volume of this figure.





Return to Top of Page













Solution 1








back to Have a Go



Return to Top of Page
